Bally Bazaar RELAYS

Cabinet Relays

Bally Bazaar CABINET RELAYS

Head Box Relays

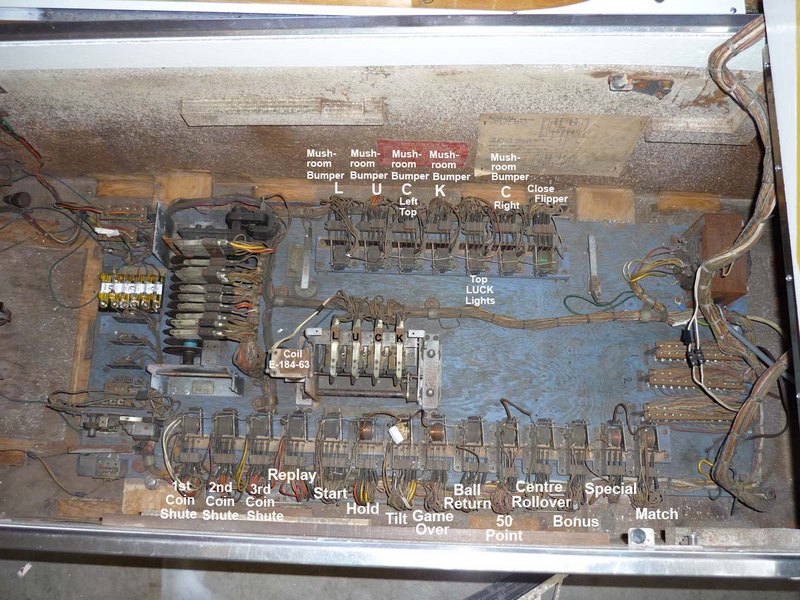

Bally Bazaar HEAD BOX RELAYS

Bally Zipper Flippers

Coil E-184-190 ( 3 lugs) was replaced with a modern coil such as a AF-25-600,
Question is what is the correct wiring from the Old Coil to newer style .




Refer to diagram for conversion on a 1966 Bally Bazaar with Zipper Flippers


Coil Conversion
